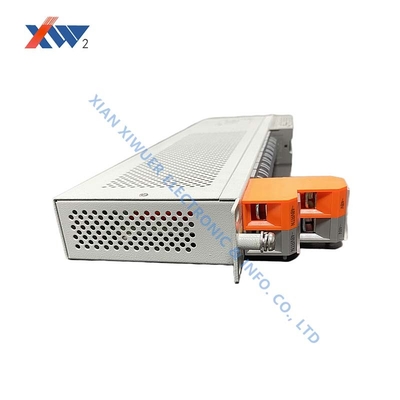

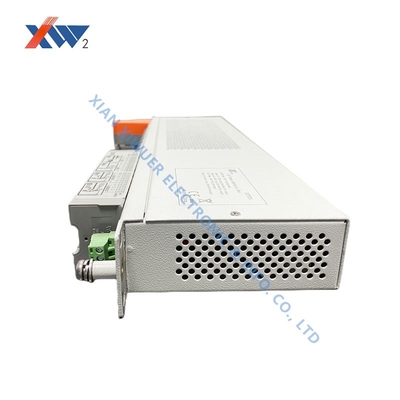

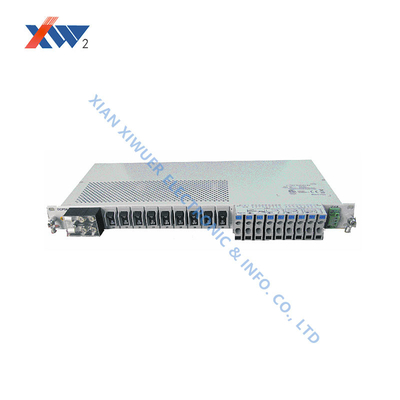

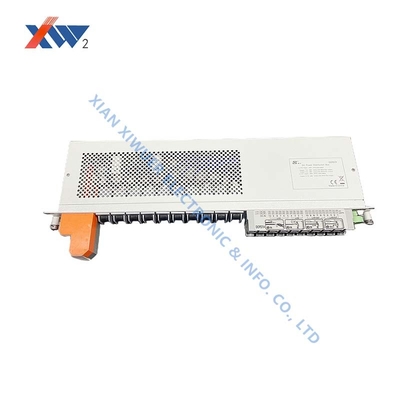

DC Power Surge Protective Device Lightning Protection Box For DCPD Series Cab -48V
Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xSzczegóły Produktu
| Napięcie | 48V | Znamionowy prąd rozładowania | 15KA (8/20us) |
|---|---|---|---|
| Znak towarowy | XIWUER | Aplikacja | ochrona odgromowa stacji bazowej zasilanie 48V DC, |
| Podkreślić | DC Power Surge Protective Device,DCPD Surge Protective Device,-48V lightning protection box |
||
opis produktu
High Quality DC power distribution unit lightning protection box for DCPD series cab -48V
Features
- The box can be distributed once or twice, the distribution voltage is 48V, and the working current is 100A-160A
- Rated discharge current is large, line to line: 10KA (8/20us) Between line and ground: 15KA (8/20us)
- The lightning protection box is designed with deterioration indicator and alarm circuit. When the green light is on, it means the circuit It is working in normal production, and the green light is off, indicating that the line is faulty or the lightning protection module is invalid. The box can be equipped with remote alarm and remote signaling terminals.
- Each branch is equipped with a dedicated lightning arrester short circuit and dedicated output terminals.
- Using a 1U chassis, it can be easily installed on a 19-inch standard rack.
Application
The product is mainly used in the lightning protection of the base station 48V DC power supply. It can be installed on a 19-inch standard rack. The box can be distributed once or twice. The 48V working current is 100A-160A, and each branch is equipped with a dedicated lightning protection short circuit and dedicated output terminals.
Technical Parameters
| Model No. | DCPD6 | DCPD6A | DCPD7 | DCPD7A | ||
|
Nominal Operating Voltage(V)) |
- 48V |
- 48V
|
- 48V
|
- 48V
|
||
| Working frequency (Hz) | DC | DC | DC | DC | ||
| Input rated load current (A) | 100 | 80 | 160 |
Power off LLVD1once5-10 channels |
120 | |
| Power off LLVD2 twice 1-4 channels | 40 | |||||
| Maximum continuous operating voltage (V) | -75 | |||||
| Output rated load current (A) | 20 |
10
|
25 | Power off LLVD1 once | Six lines 25A | |
| Power off LLVD2 twice |
Two lines 25A, two lines10A |
|||||
| Rated discharge current In (8/20µs) |
Line: 10KA Line to ground: 15KA |
Line: 10KA Line to ground: 15KA |
Power off LLVD1 once |
Line: 10KA Line to ground: 15KA |
||
| Maximum discharge current max (KA) | 20KA | 20KA | 20KA | |||
|
Indication line
|
green light on Lightning protection components work normally |
green light on Lightning protection components work normally |
Power off LLVD1 once | Green light on means normal | ||
| Power off LLVD2 twice | ||||||
| Chassis Reference Dimensions (mm) | L*H'W. 482*44*197(229) | L'H*W: 482*44*118(180) | ||||
| Protection level Up (V ) | 500V | |||||
| Flammability rating | V0 | |||||
| Protection level | IP2X | |||||
| Test standard | EN 61643-11:2011 | |||||
| Installation | Mounting brackets | 19-inch standard rack | ||||
| Conductor cross section |
0.2mm2~25mm2
|
|||||
| Nut Type | M6 | |||||
|
Ambient requirements
|
Temp. | Humidity | Atmospheric pressure | Use environment | ||
|
- 40°C~70°C
|
10%-95% (25°C )
|
≥70KPa
|
Indoor
|
|||
Note: Users can choose the corresponding protection mode according to actual needs.
