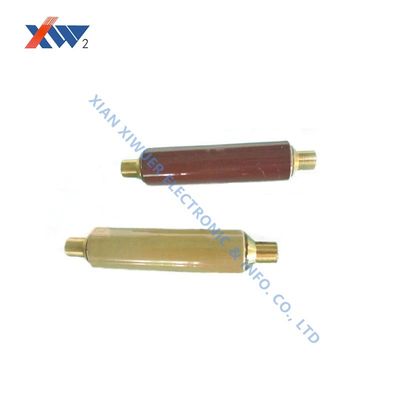

Stable 3.6kVAC Live Line Capacitor with 32kVAC Withstand Voltage and 40kV Lightning Impact for High Voltage Insulation

  • Stable 3.6kVAC Live Line Capacitor with 32kVAC Withstand Voltage and 40kV Lightning Impact for High Voltage Insulation
Miejsce pochodzenia XIAN, CHINY
Nazwa handlowa XIWUER
Orzecznictwo ISO9001,ISO14001,ISO45001,CCC
Numer modelu CT8-2-3,6kV-230pF
Minimalne zamówienie 1 sztuka
Cena negocjowalne
Szczegóły pakowania Karton
Czas dostawy 5-7 DNI
Zasady płatności L/C, T/T
Możliwość Supply 3 000 000 sztuk rocznie
Szczegóły Produktu
Pojemność 210 pF ~ 240 pF Napięcie znamionowe 3,6 kV prądu przemiennego
Utrata dielektryczna 1 V, 1 kHz, 25 ℃ ≤1,2% Wytrzymać napięcie 32kVAC·5min
Częściowe rozładowanie 3,96 kVAC < 10 szt Uderzenie pioruna 40Kv
Zostaw wiadomość
opis produktu
Stable 3.6KVAC Live Line Capacitor High Voltage Insulation With 32kVAC·5min Withstand Voltage And 40kV Lightning Impact
Live line capacitor 3.6KVAC for capacitive insulator capacitor stable ceramic capacitor high voltage applications.
Features
  • Store under safe, dry and clean environment
Applications

Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules:

  • Electrostatic generating circuit
  • X-ray equipment
  • High-voltage negative ion generator
Technical Parameters
Nominal Voltage Nominal Capacitance Capacitance Testing Frequency: 1kHz ±20% Testing Voltage: 1V ±0.2V Withstanding Voltage (Insulating Oil) Partial Discharge Lightning Impulse kV (Peak Value) (Insulating Oil) 1.2/5us
3.6kV AC230210~24032kV AC 5min3.96kV AC ≦10pC40
7.2kV AC54~641kV AC 5min7.92kV AC ≦10pC60
4036~44
150140~170
12kV AC54~652kV AC 5min13.2kV AC ≦10pC75
2018~22
4036~44
5045~55
125110~140
200180~210
300270~330
24kV AC54~670kV AC 5min26.4kV AC ≦10pC125
1513~1726.4kV AC ≦10pC
3535~4226.4kV AC ≦4pC
5045~5026.4kV AC ≦10pC
8070~9026.4kV AC ≦10pC
150125~18026.4kV AC ≦5pC
200/400/500180~22026.4kV AC ≦10pC
40.5kV AC54~6115kV AC 5min44.5kV AC ≦10pC185
108.5~11.544.5kV AC ≦5pC
4540~5044.5kV AC ≦10pC
10090~11044.5kV AC ≦10pC
